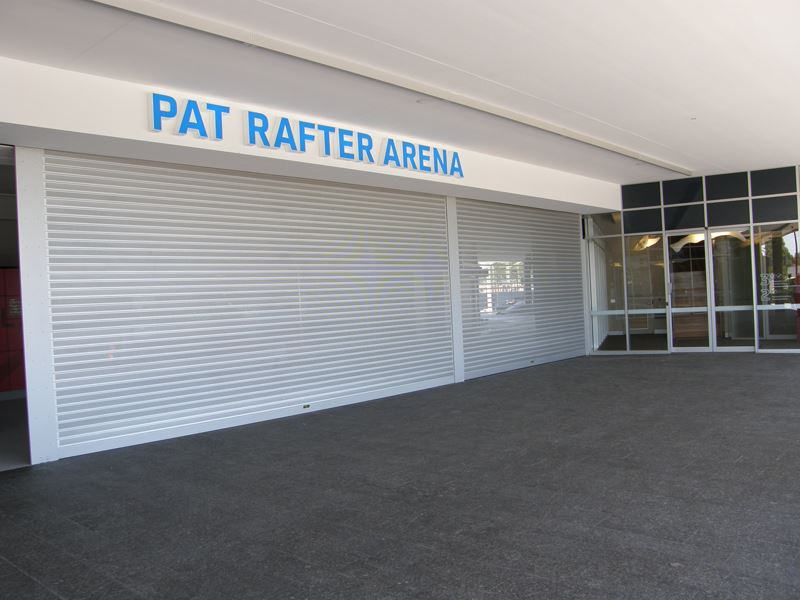

Austral Monsoon "E84" Aluminium 3EA Roller Shutter

Maximum Size - 5500 mm wide x 3000 mm high

Applications

The E83 - E84 aluminium roller shutter is an access door for perimeter building security or storage application. It is typically used for shop fronts, shopping malls, serving counters, general storage rooms, equipment and plant rooms, school storage and garages.

Features

1. Curtain - Constructed using 75mm interlocking extruded aluminium slats. The slats are retained in position using nylon end clips. For more information, refer to technical information detail below.
2. Bottom Rail - Rigid extruded aluminium section complete with finger pull. A bottom seal can be provided as an optional extra. For more information, refer to technical information detail below.
3. Side Guides (Track) - Rigid extruded aluminium sections complete with splayed tops. Side guides are available in different sizes and configurations to suit the application and aesthetics requirement. Where required or specified the side guides are bolted to fixing angles or posts of size and thickness to suit the shutter and application. For more information, refer to technical information detail below.
4. Roller Drum - Fabricated from mild steel or galvanised tube, with the outside diameter and thickness appropriate to the size and application of the aluminium roller shutter.
5. Bracket Plates - Fabricated from 3 mm galvanised steel in sizes to suit the height of the opening and engineered tube size.
6. Operation - Generally hand operated. However, appropriate tube motors can be fitted. Tube motors are 240 V and can be activated through a variety of control devices, to suit application or your preference. Tube motors require single phase, 10 amp 3 pin plug socket within 1 metre of each door opening.
7. Door Locking - Two-way 2-point key operated lock fitted to bottom rail or at waist height. Locking is not recommended for electrically operated roller shutters.
8. Finishes - Aluminium components are supplied in mill finish as standard. Etch and clear anodising or powder coating (in standard available colours) is an optional extra and is applied using our in house powder coat line at Austral Monsoon. All mild steel items are provided with zinc rich primer paint hand applied.
9. Hoods / Fascias - Available as optional extras to suit the application. Hoods are manufactured in house from 0.5 mm galvanised steel sheet. Fascias are fabricated using aluminium channel for the perimeter frame and interlocking aluminium extruded slats as an infill panel.
10. Ventilation - As an optional extra, slats can be provided with perforations or slots to provide ventilation or vision through the curtain. For more information, refer to technical information detail below.
11. Weight - 5.827 kg/m²

Technical Information

E83 - 3EA ARCHITECTURAL ALUMINIUM BOTTOM RAIL DETAIL.pdf
E83 - 3EA ARCHITECTURAL ALUMINIUM SIDE GUIDE DETAIL.pdf
E83 - 3EA ARCHITECTURAL ALUMINIUM SLAT DETAIL.pdf
E83 - 3EA HEADROOM & SIDEROOM DETAIL.pdf
